CDI-36/70 High Voltage Polymer Composite Suspension Insulator Types Electrical Insulators Porcelain Insulator Price

50.0 Pieces
CDI-36/70 High Voltage Polymer Composite Suspension Insulator Types Electrical Insulators Porcelain Insulator Price
特徴 ギャラリー 製品の説明 見積依頼
Model Number: CDI-36/70
Type: Insulator
Material: Composite Polymer
Application: High Voltage
Rated Voltage: 36KV
Tensile Strength: 70KN
Color: Gray, red and Others
証明: KEMA, ISO9001
Leakage diatance: 990mm
証明: KEMA, ISO9001
Model Number: CDI-36/70
Packaging Details: Export standard cardboard cartons, wooden pallets if needs.
Supply Ability: 100000 Piece/Pieces per Month

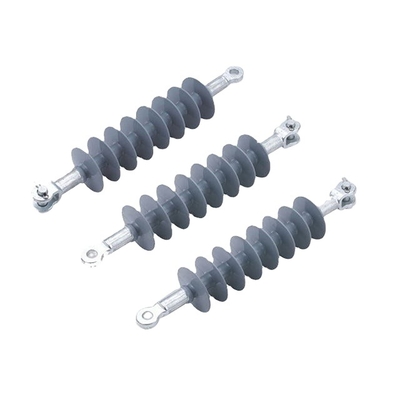

CDI-36/70 Deadend Insulator Types Electrical Insulators Composite Polymer

Product Description

Composite deadend insulators fulfill th requirements of IEC 61109.The sheds of the insulators are made if highly hydrophobic silicon rubber.The core is made of corrosion resistant fiber glass rod and the end fittings are made of hot-dip galvanized steel.They are meant to be used on 12KV uo to 36KV distribution networks.


According to IEC61109.


1. Silicon Rubber for sheds/housing

2. Fiberglass reinforced epoxy resin rod (ECR type) for core

3. Hop dip galvanized cast steel for metal fittings

any question or Need about products, please E-mail or TradeManager to me or leave message

Technical data

Type CDI-12/70 CDI-24/70 CDI-36/70
Rate Voltage 12KV 24KV 36KV
Specified Mechanical Load 70KN 70KN 70KN
Dry Arcing Distance h 180mm 300mm 404mm
Leakage Distance 430mm 660mm 990mm
Power Frequency Dry Flashover




Power Frequency Wet Flashover 75KV 110KV 160KV
Section Length H 180mm 300mm 404mm
Number of Sheds 4 6 9

Packaging & Shipping


1. Q: Are you a factory?

A: Yes, we are professional factory

2. Q: Where are you located in?
A: Our factory located in Yueqing of China as the famous “Capital of Electric”

3. Q: Can we visit your factory?
A: Sure, welcome to visit our factory and our production line.

4. Q: Can we have samples?
A: Sure, we can provide sample for your evaluation.

5. Q: What is your delivery time?
A: It will be within 1 week for the product in stock, 2-5 weeks for new production order.

6. Q: What is your payment term?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 40% T/T in advance ,balance before shipment.

We see the high quality and the credit as our life, and always keeping our quality principle “ Quality Priority, Quality Management Standards, Customer Satisfaction, Brand Oriented”

Company Information

Pomanique Electric Co., Ltd. is a leading high-voltage electric apparatus manufacturer specializing in designing and producing power transmission & distribution equipments. Pomanique founded in the year of 1996 and locating in the city of Wenzhou, Zhejiang province of China. We professionally produce Surge Arresters, Composite Insulators, Fuse Cutouts, Power Transformers, HV Switch Disconnector and Vacuum Circuit Breakers.

Currently, Pomanique is an ISO9001:2000 certified company and the products are certified by KEMA Lab. Meanwhile, we have been well recognized by the electric power industry home and abroad. Pomanique has been attaching great importance on the science & technology innovation, and set up a Research & Development Center for promoting products innovation in 2001. In recent 10 years, more than 50 products have passed the national evaluation and certification, and more than 25 products have passed the tests conducted by well-known international laboratories.

With the enterprise spirit of "Faith, Profession, Innovation, Customer First", Pomanique will persevere to be world-class professional and reliable manufacturer in the power transmission & distribution field.
