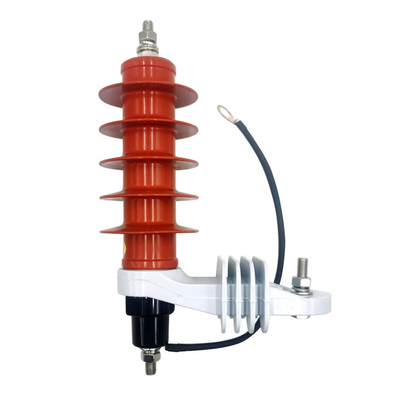

High Voltage Polymer Silicone Rubber Zinc Oxide Surge Arrester 12kv

10.0 pieces
MOQ
High Voltage Polymer Silicone Rubber Zinc Oxide Surge Arrester 12kv
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: YH10W-3/6/9/10/11/12/15/18/21/24/27/30/33/36kv
Product Name: zinc oxide surge arrester
Housing material: Silicone rubber
Certificate: CE, ISO, ROHS
Type: YH10W-3/6/9/10/11/12/15/18/21/24/27/30/33/36kv
Rated current: 5(10)kA
Housing: polymer
OEM/ODM: Yes
Operating Ambient: -40℃-+40℃
Frequency Range: 48-62Hz
Maximum Wind speed: 35m/s
基本情報
証明: CE, ISO, ROHS
Model Number: YH10W-3/6/9/10/11/12/15/18/21/24/27/30/33/36kv
お支払配送条件
Packaging Details: Carton+Box
Supply Ability: 10000 Piece/Pieces per Month
製品の説明
Product Paramenters
Name
Zinc Oxide Surge Arrester
Color
Red/Gray
Ambient air temperature
-40℃ ~ +40℃
Frequency Range
48-62Hz
Maximum Altitude
2000m
Maximum Wind Speed
35m/s
Power Frequency Voltage
Under the Continuous Operating Voltage
High Voltage Polymeric Zinc Oxide Surge Arrester 12kv
Description: Zinc Oxide Surge Arrester is one of the most advanced protectors limiting over-voltage, and is the basis of the insulation coordination equipment in power industry. It has many advantages such as quick action, flat Volt-ampere characteristics, low residual voltage, high discharge current capacity, stable electrical performance, long life cycle,simple structure and etc. It is widely used in power generation, transformation and distribution system to prevent the insulation of the power equipments from being damaged by the over-voltage. Polymer-housed metal-oxide surge arrester (MOA) is the scientific achievement that combines the advantages of organic insulation material and traditional porcelain-clad MOA technique. It has excellent insulation performance, high dialectical strength, anti-leaking, anti-electric corrosion, heat-resisting, cold-resisting, anti-aging, explosion-proof, and good chemical stability, hydrophobic property, and nice sealing. It is designed and manufactured strictly following the standard of GB11032 and achieves advantage against the competitive international products.
Recommend Products
Company introduction
Xian Supurui Electric Co., Ltd.
For over 15 years, Supreme has been an expert in electric power equipment, electrical apparatuses and lighting fitting solutions . With steadily growing efficiency, innovative technologies are applied when developing new products and system solutions. Within the Supreme, currently over 200 employees are dedicated to produce SF6 gas density monitors, high and low voltage switchgears, vacuum switch accessories, transformers,  Surge arrester and other electrical system equipments and accessories. Over 20 experienced employees within the sales department consult customers and users competently on a partnership basis. More than 10 engineers and technicians are searching continually to provide innovative product solutions, improved materials and profitable production methods. In close cooperation with institutes and industrial companies, solutions for specific applications are developed.
Our Advantages
Within the Supreme, currently over 200 employees are dedicated to produce SF6 gas density monitors, high and low voltage switchgears, vacuum switch accessories, transformers,  Surge arrester and other electrical system equipments and accessories. Over 20 experienced employees within the sales department consult customers and users competently on a partnership basis. More than 10 engineers and technicians are searching continually to provide innovative product solutions, improved materials and profitable production methods. In close cooperation with institutes and industrial companies, solutions for specific applications are developed.
Main Market
Logistics transportation
FAQ

Q: What information need to be provided to choose the suitable model? A: Please provide us: application field, measuring range , accuracy, connection and other related parameters. so we can choose model and quote for you quickly. Q: Are you a trade company or a manufacturer? A: We are an ISO approved manufacturer specialized in level and flow measuring instruments. OEM & ODM service are available. Welcome to visit us. Q: What is your MOQ? A: To start our cooperation, sample order is acceptable. Q: What is your delivery date? A: The delivery date is about 3-15 working days after receipt of payment. Q: What is your payment terms? A: We support T/T, PayPal and Trade Assurance. For mass production order, it is 30% deposit in advance and 70% balance before shipment. Q: What is Trade Assurance payment method: A: It’s a free service which can protect your orders from payment to delivery. And we now have USD104,000.00 of caution money to assure your orders. Q: Do you have a warranty? A: Yes, we have the warranty of 12 months.
