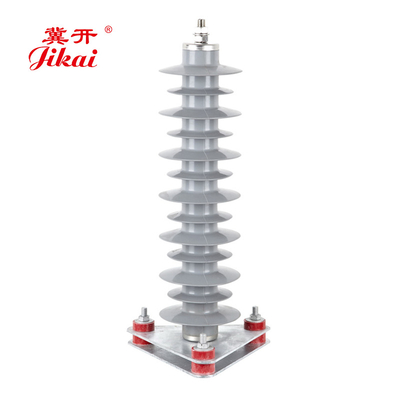

VARISIL ™ RSA / ( XX 5/10/20 W-YY where YY = 3 to 444kV) Type Surge Arresters to Latest IEC 60099-4-2009 PORCELAIN & POLYMER HOUSED GAPLESS METAL OXIDE TYPE from 3 kV up to 444 kV
1.2 Application: for protection of power transmission & distribution system from over-voltage
1.3 Standards: IEC 60099-4: 2006 to 2009, ANSI, etc.
1.4 Features:
• Silicone polymer / composite housed metal oxide surge arrester and Porcelain housed metal oxide surge arresters are available.
• Easy installation and maintenance.
• Excellent sealing capability to ensure reliable operation.
• Protection and reliability of the surge arrester has been greatly enhanced.
MOA is the most advanced over-voltage protection.
ZnO is due to the valve has excellent non-linear sound steep wave impact, with its assembly of over-voltage arrester can be limited to a relatively low level, so as to provide reliable protection to the equipment. Compared with porcelain MOA, the composite jacket zero-lash ZnO arrester (hereinafter referred to as HMOA) has more stain resistant, ageing resistant, anti-explosive, anti-ultraviolet capability and smaller size, lighter weight. May reduces the equipment setup area, improves the exterior contamination and the environment condition to its influence.
After comprehensive researching, we apply the valve plate elements and high performance of the jacket material production of HMOA products from advanced institutes of scientific research., to ensure the reliability of product performance.
2. Type Designation
Product model signification:
3. Requirements when ordering voltages ranging from 108kV and above
3.1. Corona Rings are STD component for voltages ranging from 100kV and above.
3.2. Base Plates with insulating bases are to be only ordered or used when coupling them to Surge Counter applications.
3.3. All station types have STD base plates and these are as STD supply for voltages ranging from 40kV and above.
4.Working Condition
4.1. Ambient air temperature: -40°C ~ +60°C;
4.2. Altitude: ≤3000m;
4.3. Frequency: 48Hz ~ 62Hz;
4.4. Power frequency voltage applied between terminals of surge arrester must not exceed continuous operating voltage of surge arrester;
4.5.Earthquake (Seismic) intensity is less than 8 degree; 4.6. Max. wind speed is 35m/s;
5.Major technical parameters and overall dimensions:
5.1. Metal Oxide Varistar Polymer Housed (Gapless) type Surge Arrester for A.C Systems (5kA)
Special requirement PLS negotiation with our company!
6.Ordering Information
6.1. Max. System Voltage;
6.2. System Neutral Connection (i.e. effective or Non-effective System earthing); 6.3. Rated Voltage or Max. Continuous Operating Voltage;
6.4. Nominal Discharge Current (i.e. 5, 10 or 20kA);
6.5. Type of Housing (Polymer or Porcelain);
6.6. Pollution Level and or Creepage Distance (i.e. Light, Medium, Heavy & Very Heavy);
6.7. Any Specific / Special Requirement (i.e. Terminal end fittings);
6.8. Accessories (i.e. Insulating Bracket with Disconnecting Device,Insulating Base & Surge Counters)
Company Profile
Baoding Jikai Power Equipment Co., Ltd.
Baoding Jikai Power Equipment Co., Ltd. was founded in 1985, with a registered capital of 100 million yuan, which has more than 200000 square meters of the land area. The company is located in Fangshunqiao Town, Mancheng District, Baoding City, adjacent to Beijing Guangzhou railway, Beijing Kunming Expressway and 107 national highway, with convenient transportation and superior geographical location. It is a high-tech enterprise specializing in R & D, production and sales of power equipment products. Its main products include 1000kV and below series composite insulators, electrified railway catenary series composite insulators, 10kV oil immersed transformer, 10kV amorphous alloy transformer, 10kV dry-type transformer, fuse cutout, 10kV disconnector, 10kV composite zinc oxide arrester, meter box and distribution box, vacuum circuit breaker, box type substation, etc. With stable and reliable product technology and excellent brand, the company has won wide recognition from customers. Its products are used in State Grid and high-speed railway, and are qualified suppliers of State Grid and China Southern Grid.
Baoding Jikai Power Equipment Co., Ltd.
Our company can supply all kinds of self-contained complete products to factories that produce similar products, including composite insulating coating, high voltage fuse insulator brackets, high&low voltage isolator brackets, accessories, hardware tools, gross rubbers.
Baoding Jikai Power Equipment Co., Ltd.
The manufacturing techniques of our company meet international standard and the complete test equipment guarantees the quality of the goods. Have passed ISO 9001:2000 Quality Management System Certificate and has been listed into the recommendatory catalogue of urban and rural electricity grid construction.
Baoding Jikai Power Equipment Co., Ltd.
Our company honors the contract and keeps our promise in business. We are looking forward to extendingthe cooperation with more international partners in this industry.
Equipment & Certification
Customer & Engineering Case
Packing and shipping
Packaging: preformed guy grip according to the concrete product cartons,wooden cases (as customer's requirements)
Delivery: usually,it will take about two weeks for the order of 100000sets for production
Our Services
Respect and understand customers firstly, and provide them with products and services which exceeding their expectations, and treat them friendly, make friends with them forever. This is the service concept which we still uphold and promote.
Thinking our customers every time. The quality which we mean do not only refer to the intrinsic quality of the products, but also including the packaging quality, service quality and other factors. Must be comprehensively and maximize meet consumers’ demand.
◇ should stand on customers’ (or consumers’) position, rather than stand in the position of the company while researching, designing and improving service.
◇ improve the service system, strengthen the service of pre-sale, sale, and post sale, to customers in the use of the various products to help solve the problems in a timely fashion, so that customers are extremely convenient.
◇ attaches great importance to customer feedback, allows customers to participate in decision-making, consider the views of customer as a key of their satisfaction.
◇ to establish a customer-centric mechanism. The establishment of institutions and the changes of the service flows etc. should consider customers’ demand as the center, and establish customer feedback rapid response mechanisms.
Three Elements of Customers’ Satisfaction:
Quality satisfaction: that customers are satisfied with the quality of the products.
Service satisfaction: refers to customers’ positive attitude towards pre-sale, sales, and post sales service. No matter how perfect the products, how reasonable prices, when it appeared in the market, we must rely on the service. "Good post sales create a permanent customers."
Corporate image satisfaction: that of the citizen’ certainly evaluation with enterprises integrated strength and the overall impression.
FAQ & Order notice
Q1. Are you a manufacturer or trading company? A. Manufacturer/ Trading Company. https:/bdjikai.en.alibaba.com/
Q2. How do you make sure your good quality ?
A. We use the best raw material , and every single product will go through a series of strict test.
Q3. Will you accept using customer's logo ? A. Yes, we can offer OEM and ODM.
