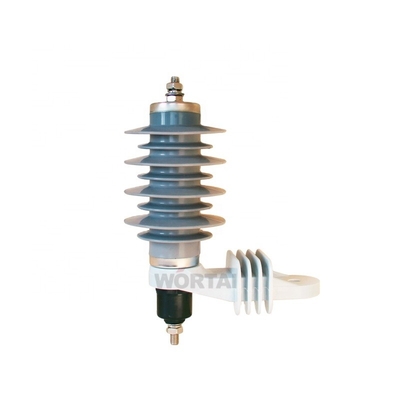

Arrester type | Rated voltage Ur (kV) | Max. continues operating voltage | Residual Voltage (kV) | ||||||||||
as per IEC | as per ANSI/IEEE | 1/10 μs Steep current impuse | 8/20μs Lightning current impulse | 30/60μs Switching current impulse | |||||||||
Uc (kV) | MCOV (kV) | ||||||||||||
YH10W-3/9 | 3 | 2.4 | 2.55 | 11.3 | 9 | 8.9 | |||||||
YH10W-6/18 | 6 | 4.8 | 5.1 | 20.5 | 18 | 16 | |||||||
YH10W-9/27 | 9 | 7.2 | 7.65 | 31 | 27 | 24 | |||||||
YH10W-10/30 | 10 | 8.0 | 9.3 | 34.1 | 30 | 26.6 | |||||||
YH10W-11/33 | 11 | 8.8 | 9.35 | 38 | 33 | 29 | |||||||
YH10W-12/36 | 12 | 9.6 | 10.2 | 41.5 | 36 | 30.6 | |||||||
YH10W-15/45 | 15 | 12.0 | 12.7 | 52 | 45 | 38.3 | |||||||
YH10W-18/54 | 18 | 14.4 | 15.3 | 62 | 54 | 46 | |||||||
YH10W-21/63 | 21 | 16.8 | 17 | 72.5 | 63 | 53.5 | |||||||
YH10W-24/72 | 24 | 19.2 | 19.5 | 82.5 | 72 | 61.2 | |||||||
YH10W-27/81 | 27 | 21.6 | 22 | 93.2 | 81 | 69 | |||||||
YH10W-30/90 | 30 | 24.0 | 24.4 | 104 | 90 | 80 | |||||||
YH10W-33/99 | 33 | 26.4 | 28.0 | 113.8 | 99 | 84.2 | |||||||
YH10W-36/108 | 36 | 28.8 | 29.0 | 124.2 | 108 | 91.8 |
Arrester type | Rated voltage Ur (kV) | Max. continues operating voltage | Residual Voltage (kV) | ||||||||||
as per IEC | as per ANSI/IEEE | 1/10 μs Steep current impuse | 8/20μs Lightning current impulse | 30/60μs Switching current impulse | |||||||||
Uc (kV) | MCOV (kV) | ||||||||||||
YH5W-3/9 | 3 | 2.4 | 2.55 | 11.3 | 9 | 8.9 | |||||||
YH5W-6/18 | 6 | 4.8 | 5.1 | 20.5 | 18 | 16 | |||||||
YH5W-9/27 | 9 | 7.2 | 7.65 | 31 | 27 | 24 | |||||||
YH5W-10/30 | 10 | 8.0 | 9.3 | 34.1 | 30 | 26.6 | |||||||
YH5W-11/33 | 11 | 8.8 | 9.35 | 38 | 33 | 29 | |||||||
YH5W-12/36 | 12 | 9.6 | 10.2 | 41.5 | 36 | 30.6 | |||||||
YH5W-15/45 | 15 | 12.0 | 12.7 | 52 | 45 | 38.3 | |||||||
YH5W-18/54 | 18 | 14.4 | 15.3 | 62 | 54 | 46 | |||||||
YH5W-21/63 | 21 | 16.8 | 17 | 72.5 | 63 | 53.5 | |||||||
YH5W-24/72 | 24 | 19.2 | 19.5 | 82.5 | 72 | 61.2 | |||||||
YH5W-27/81 | 27 | 21.6 | 22 | 93.2 | 81 | 69 | |||||||
YH5W-30/90 | 30 | 24.0 | 24.4 | 104 | 90 | 80 | |||||||
YH5W-33/99 | 33 | 26.4 | 28.0 | 113.8 | 99 | 84.2 | |||||||
YH5W-36/108 | 36 | 28.8 | 29.0 | 124.2 | 108 | 91.8 |
